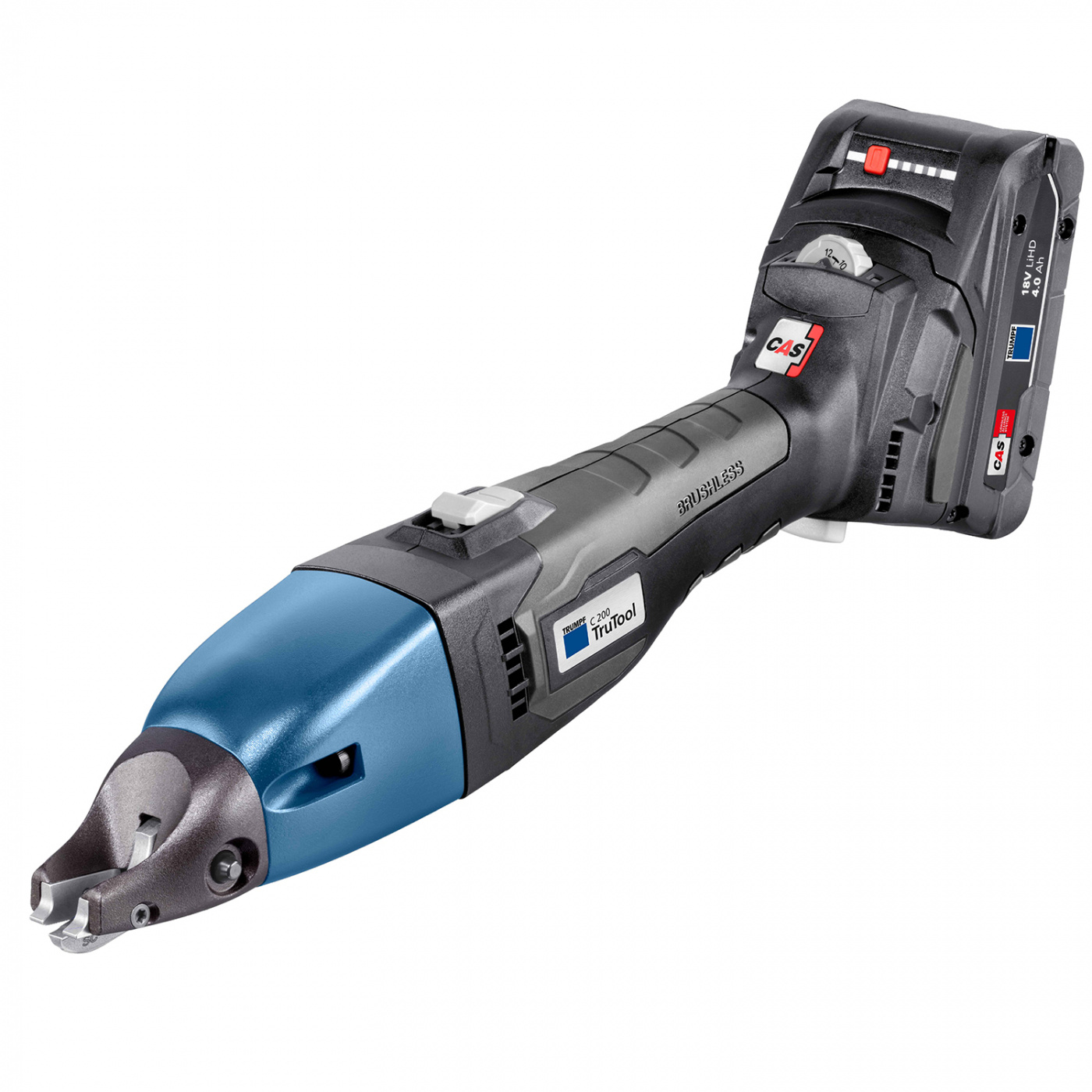

Slitting shears TruTool, Trumpf, C200 18V LiHD

The open cutting head enables you to pull the machine easily out of the sheet. A chip clipper is not necessary.

- Practically unlimited service life, virtually wear-free and hardly any maintenance. Battery performance per charge is also increased.

- A soft grip ensures low-vibration machine control. The machine is thereby extremely compact and light.

- The 18 V battery machine separates mild steel sheet thicknesses of up to 2 mm, fold thicknesses up to 3.6 mm, and even stainless steel sheets up to 1.5 mm.

Ask a question

Delivery: Not in stock

Information

Applications:
- For cutting spiral ducts. Cuts in all directions, even oven folds.
- For cutting and trimming flat sheets. For radial and interior cutouts as well as notching.

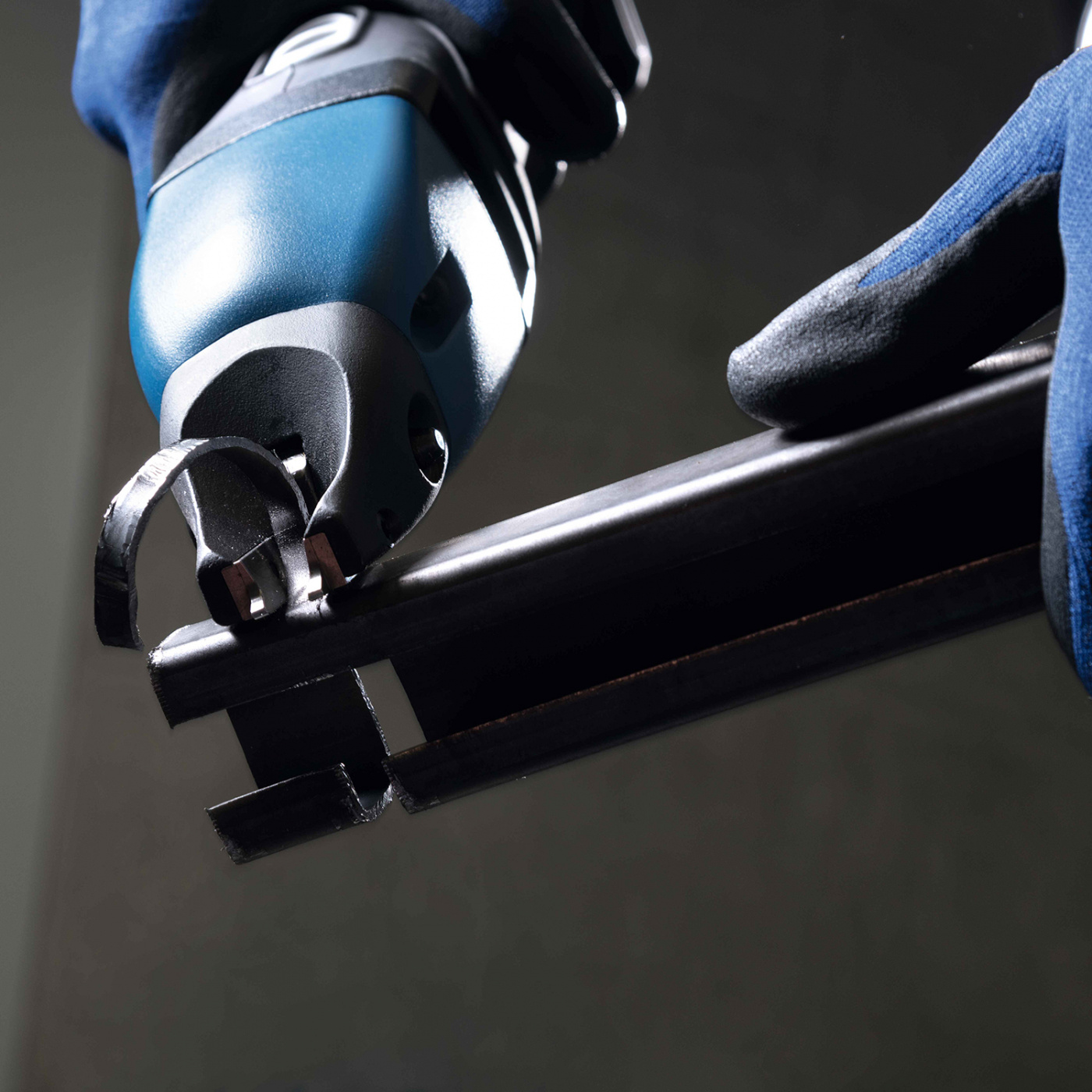

- For cutting C-L-U profiles and longitudinal cuts in profile sheets.
- For cutting tubes.
- For cutting rice gain sheets. For radial and interiour cutouts.
- For cutting checker plates. For radial and interior cutouts.
- For cutting coils. For relief cuts and sampling.

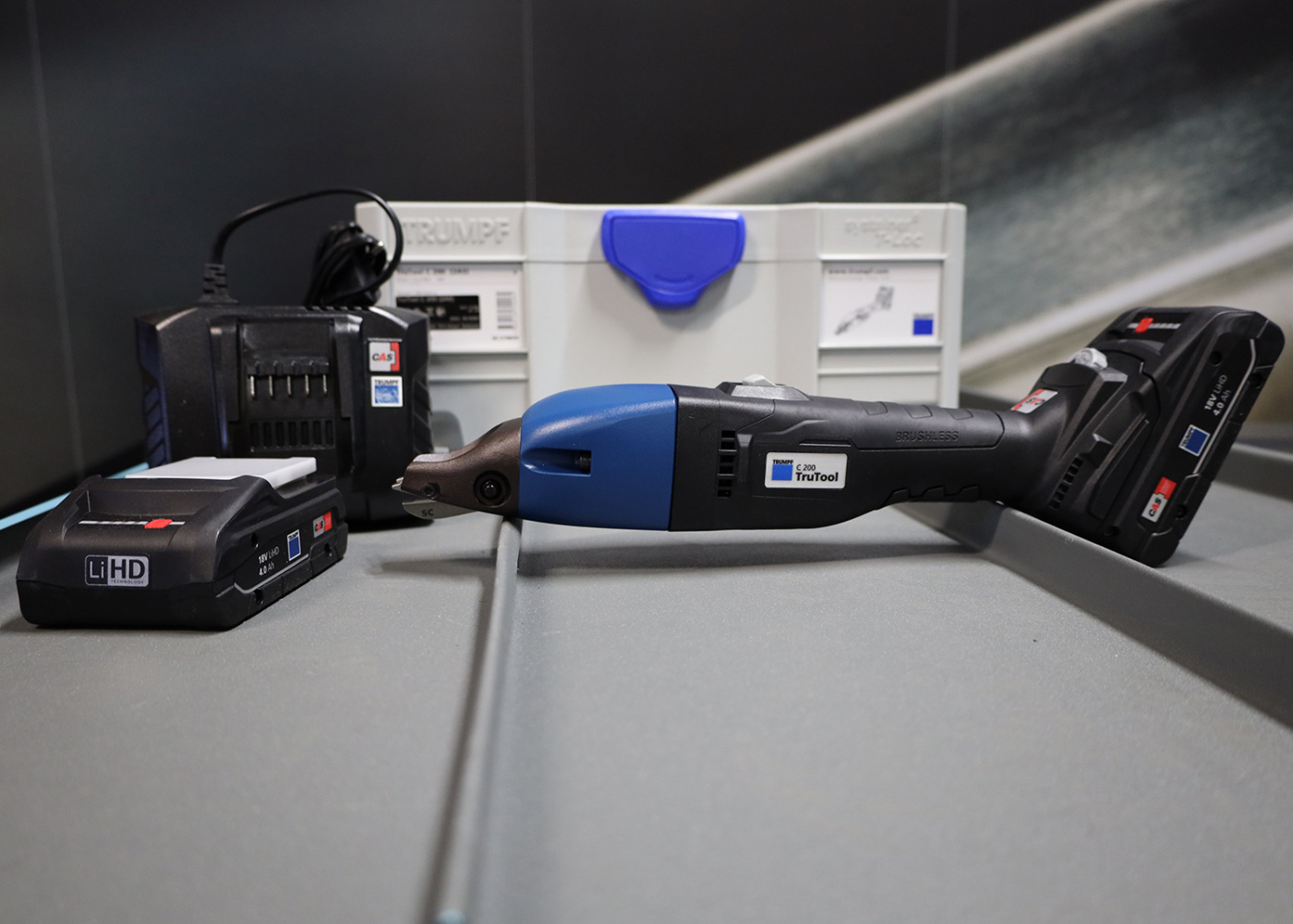

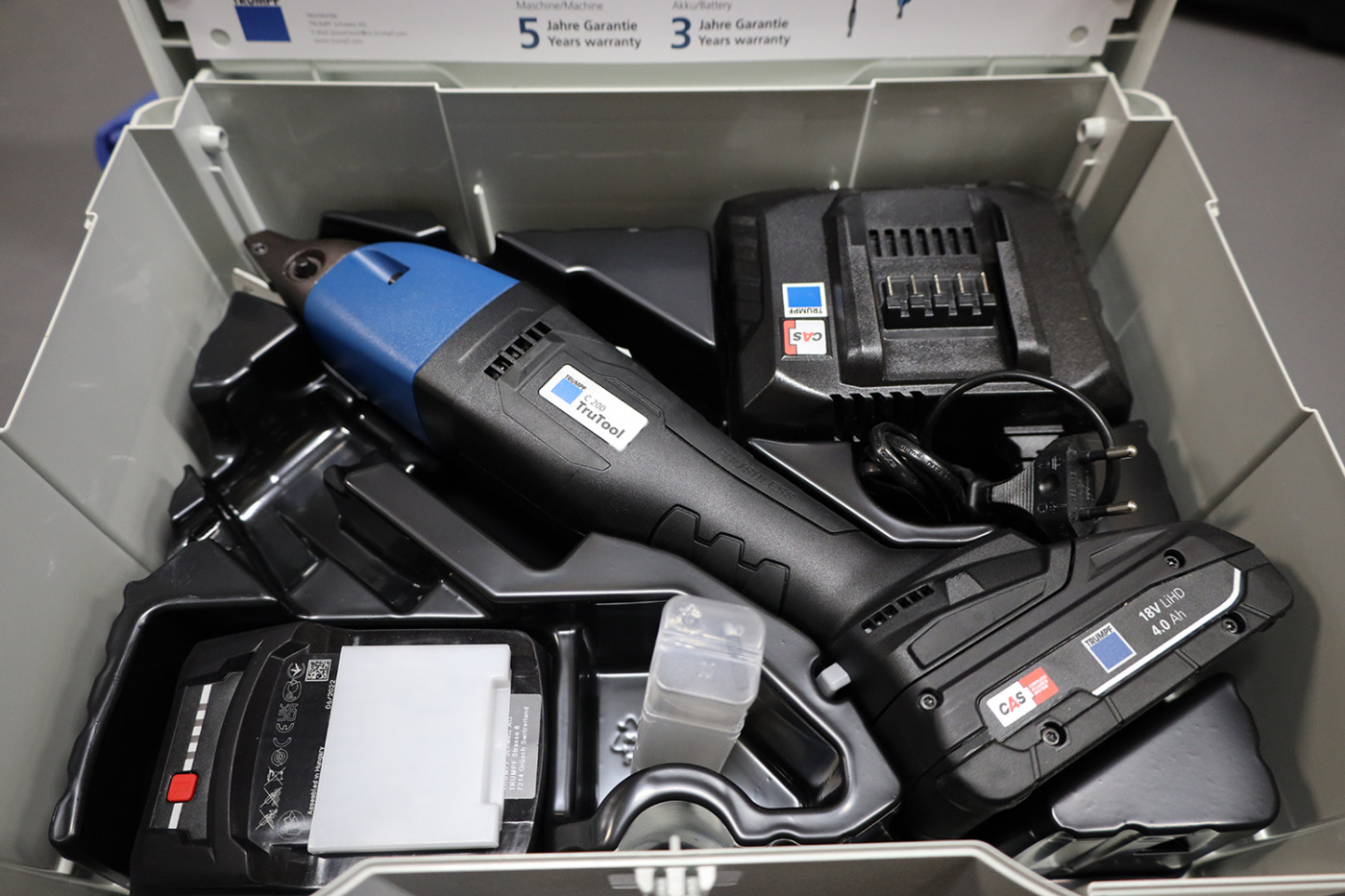

C200 is delivered with Set Spiro installed (1x cutter SC, 2x corrugated cut guides), TORX screwdriver, belt clip, 2x battery 18V LiHD 4 Ah, charger LG 12V − 36V, TRUMPF Box S2.

Maximum sheet thickness:
Spiral duct, steel 400 n/mm²	4 x 0,9 / 6 x 0,6 mm
Spiral duct, steel 600 n/mm²	4 x 0,6 mm

Radii
Smallest radius	80/110 mm with set spiro

General
Working speed	3 m/min - 10 m/min (10 m/min for set spiro)
Stroke rate at nominal load	2500 1/min
Stroke rate during idle run	2950 1/min
Starting hole diameter	8 mm
Voltage	18 V

Weight (with 4 Ah rechargeable battery)	2,4 kg
