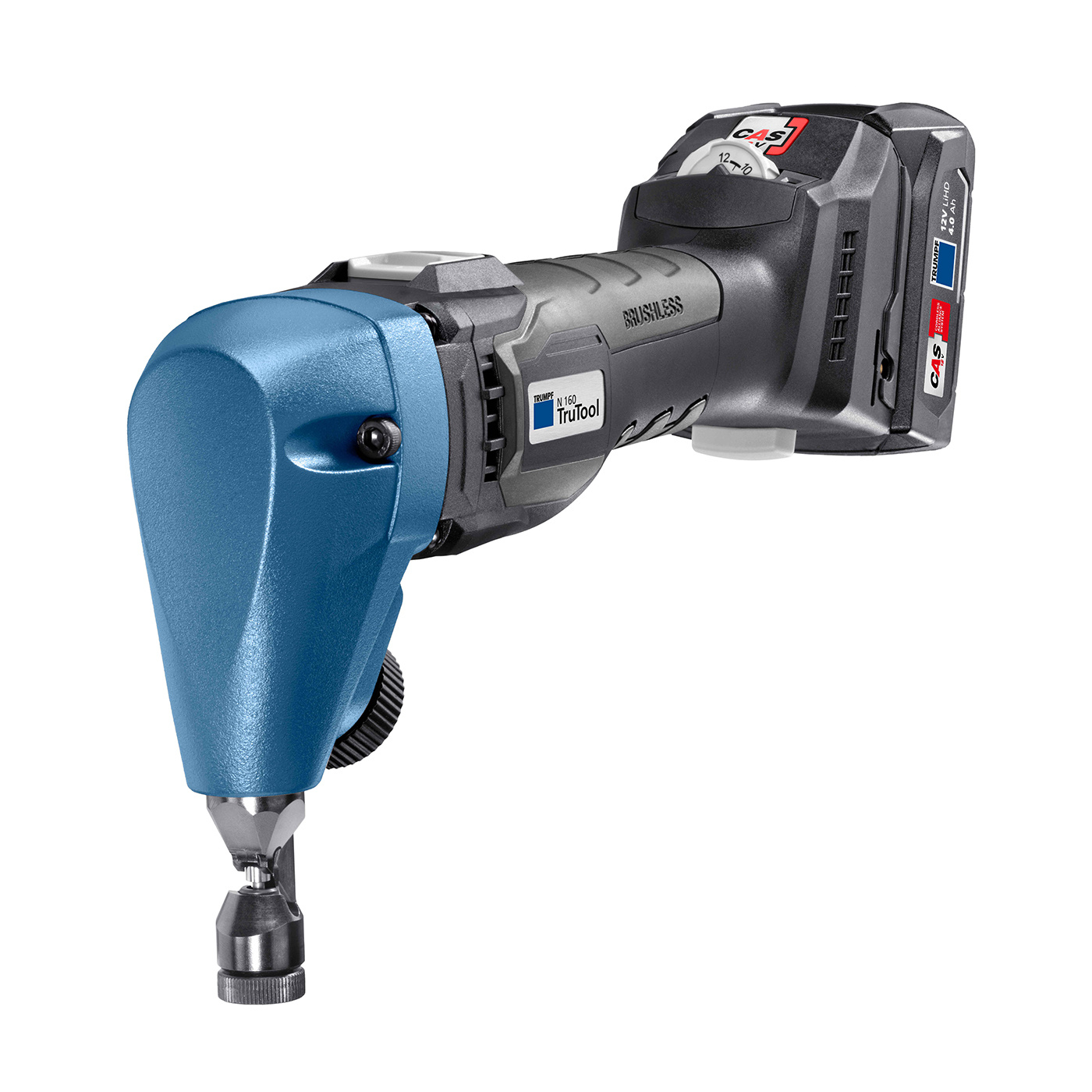

Nibbler Trumpf - TruTool N160 12V LiHD

The compact 12V cordless machine is ideal for cutting flat and corrugated sheets measuring up to 1.6 mm thick.

- Compact and practical 12V rechargeable battery. Compatible in its voltage class and with the 12V-36V recharger.

- Almost unlimited service life, virtually wear-free and hardly any maintenance required. Battery performance per charge is also increased.

- The cutting tool can be rotated in 8 steps of 45° without tools.

- You can change dies and punches quickly without additional tools.

- The TruTool N 160 fits comfortably in your hand with its weight of 1.5 kg and an optimal grip circumference.

- The rotating punch reduces wear by ensuring the tool wears down evenly.

Ask a question

Delivery: 1-2 working days

Information

Cutting is corrosion-free and without distortion and the 4.0 Ah / 12V-LiHD rechargeable battery provides long runtimes. The soft grip ensures a secure hold and enables low-vibration operation. With the optionally available extension, you can always extend the range of applications and thus also cut deep profiles. The tools can be changed very easily using the rotary knob.

Applications:
- Flat sheet, for cutting straight sheets and trimming them to length. For notches, as well as radial and interior cutouts.
- Corrugated sheet, for trimming to lenght and cutting. For diagonal cuts, interior cutouts and radial cuts.

Maximum sheet thickness:
Maximum sheet thickness, steel 400 n/mm²	1.6 mm
Maximum sheet thickness, steel 600 n/mm²	1 mm
Maximum sheet thickness, steel 800 n/mm²	0,7 mm
Maximum sheet thickness, aluminium up to 250 n/mm²	2 mm

Radi
Smallest radius	24 mm

General
Working speed	2.2 m/min
Starting hole diameter	22 mm
Voltage	12 V

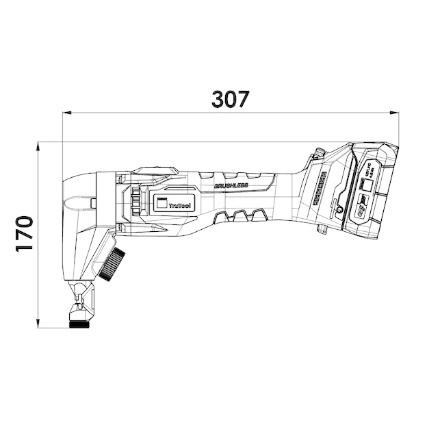

Dimensions
Lenght	307 mm
Height	170 mm

Weight
Weight (with 4 Ah rechargeable battery)	1,6 kg
