- Easy to set
The machine can be rotated by 360° in 4 x 90° increments without any obstructions. - Minimal force required
You work without feed force and so reduce the effort required to a minimum. - Impressive handle
Space-saving operation thanks to the narrow form and positioning of the handle. - Rectangular punch with flexibility for profiles

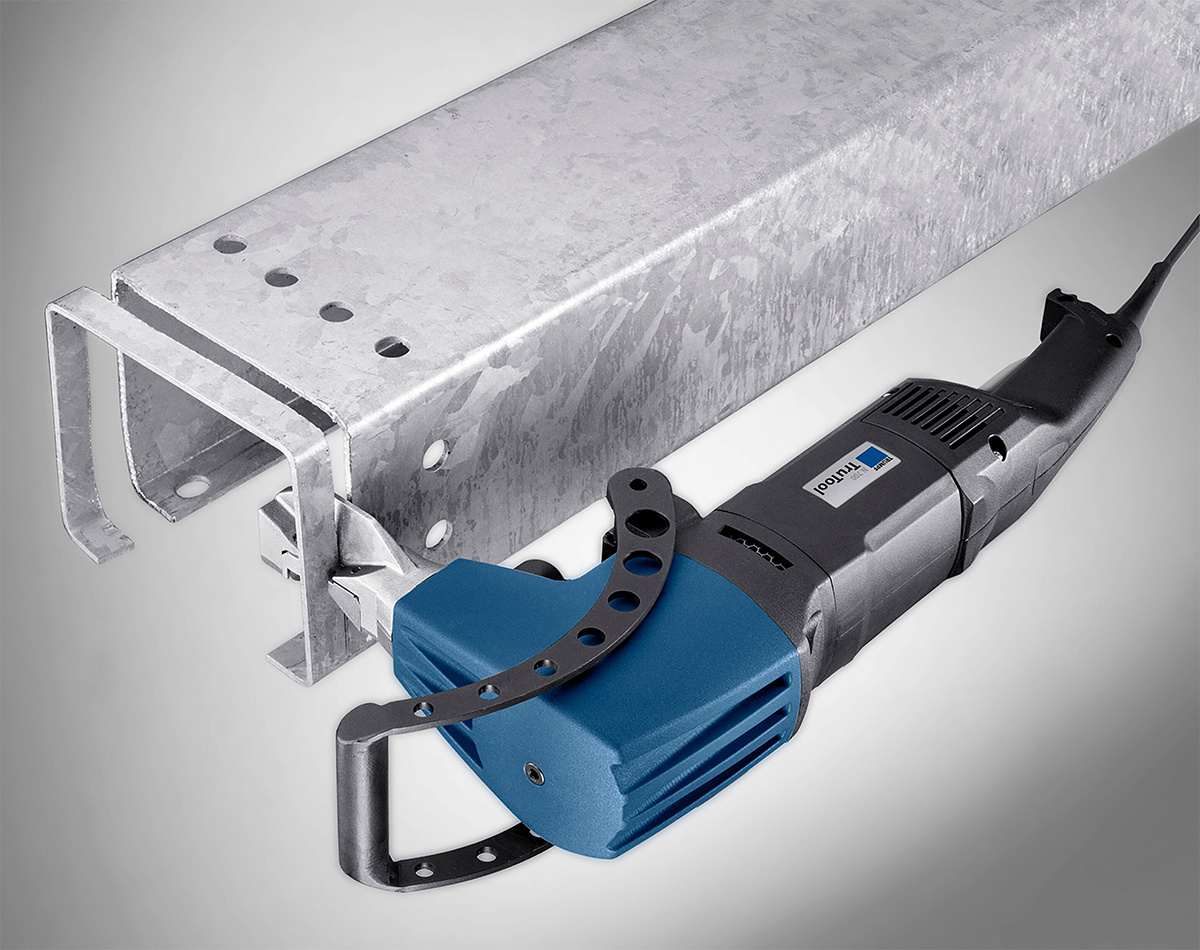

Ideal for work in hard-to-reach areas and for cuts across edges and welding seams. - Surprisingly lightweight
Unbeatable weight and power ratio of 7.7 kg versus cutting sheet thicknesses of 7 mm. - Consistently fast
No drop in performance thanks to consistent speed under load.
| MAXIMUM SHEET THICKNESSES | |
| MAXIMUM SHEET THICKNESS, STEEL 400 N/MM² | 7 mm |
| MAXIMUM SHEET THICKNESS, STEEL 600 N/MM² | 5 mm |
| MAXIMUM SHEET THICKNESS, STEEL 800 N/MM² | 3.5 mm |
| MAXIMUM SHEET THICKNESS, ALUMINIUM UP TO 250 N/MM² | 10 mm |
| RADII | |
| SMALLEST RADIUS | 140 mm |
| GENERAL | |
| WORKING SPEED (MAX.) | 1.3 m/min |
| STARTING HOLE DIAMETER | 50 mm |
| NOMINAL POWER CONSUMPTION | 1700 W |

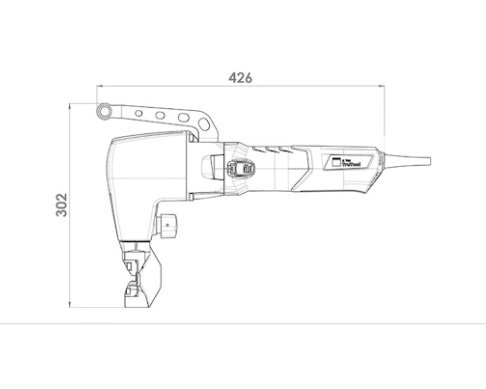

| DIMENSIONS | |
| LENGTH | 426 mm |
| HEIGHT | 302 mm |
| WEIGHT | |
| WEIGHT | 7.7 kg |
