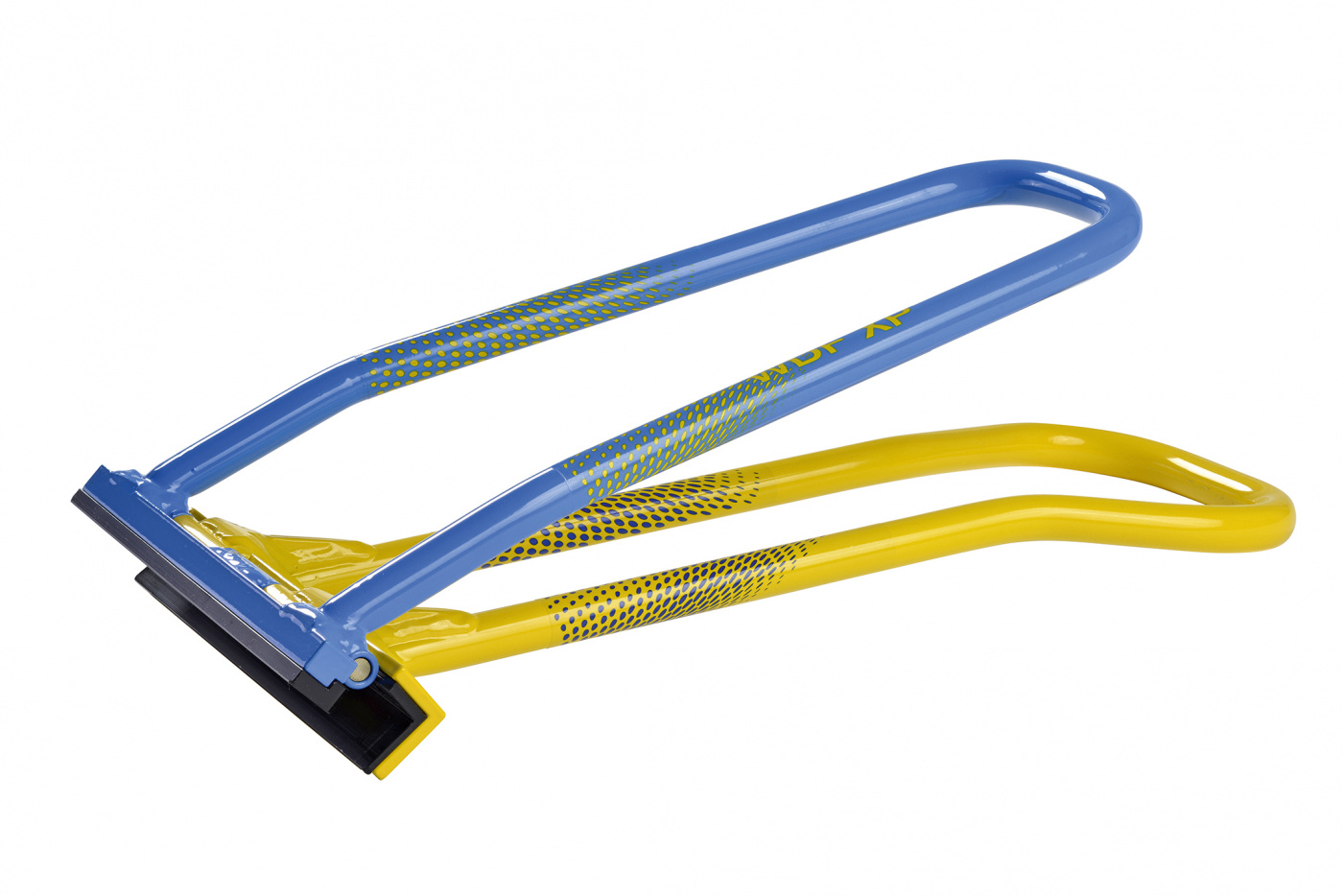

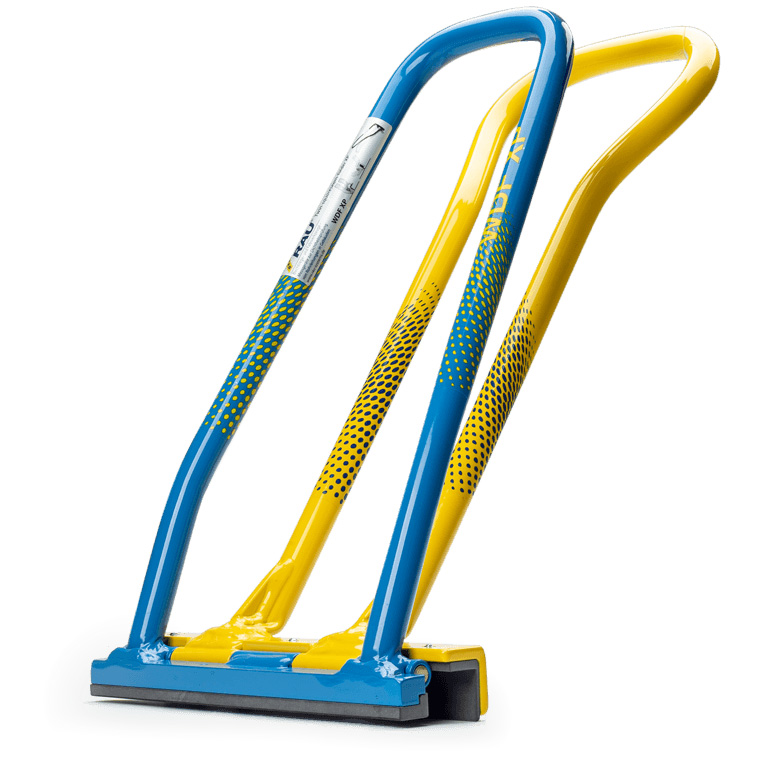

Twin-squareseamer-folder XP Nova RAU 1174

• Information

• The Rau 1174 Double Square-Seam Folder XP is a horizontal steel tool with plastic jaws. With the same tool, you first close a single standing seam and then a double standing seam. The plastic jaws protect the sheet from scratches, making the tool especially suitable for coated sheet metal.

  Plastic jaws that protect the sheet

  The hard-wearing plastic jaws protect sensitive surfaces from scratches and damage. You get a clean, neat seam even on coated sheet metal. The jaws are replaceable and available as spare parts.

  Single and double seams with the same tool

  First you close the seam to a single standing seam. Then you close it to a double standing seam, with the same tool. Two work steps, one tool.

  Robust and ergonomic

  The ergonomic handles make the tool easy to handle. The Double Square-Seam Folder XP is robust, hard-wearing and built to last.

  Technical data

  Working width: 220 mm
  Height: 65 mm
  Width/depth: 400 mm
  Weight: 2.6 kg
  Material: steel
  Max sheet thickness copper/zinc/aluminium: 0.8 mm
  Max sheet thickness galvanised/coated steel: 0.7 mm
  Max sheet thickness stainless steel: 0.5 mm
