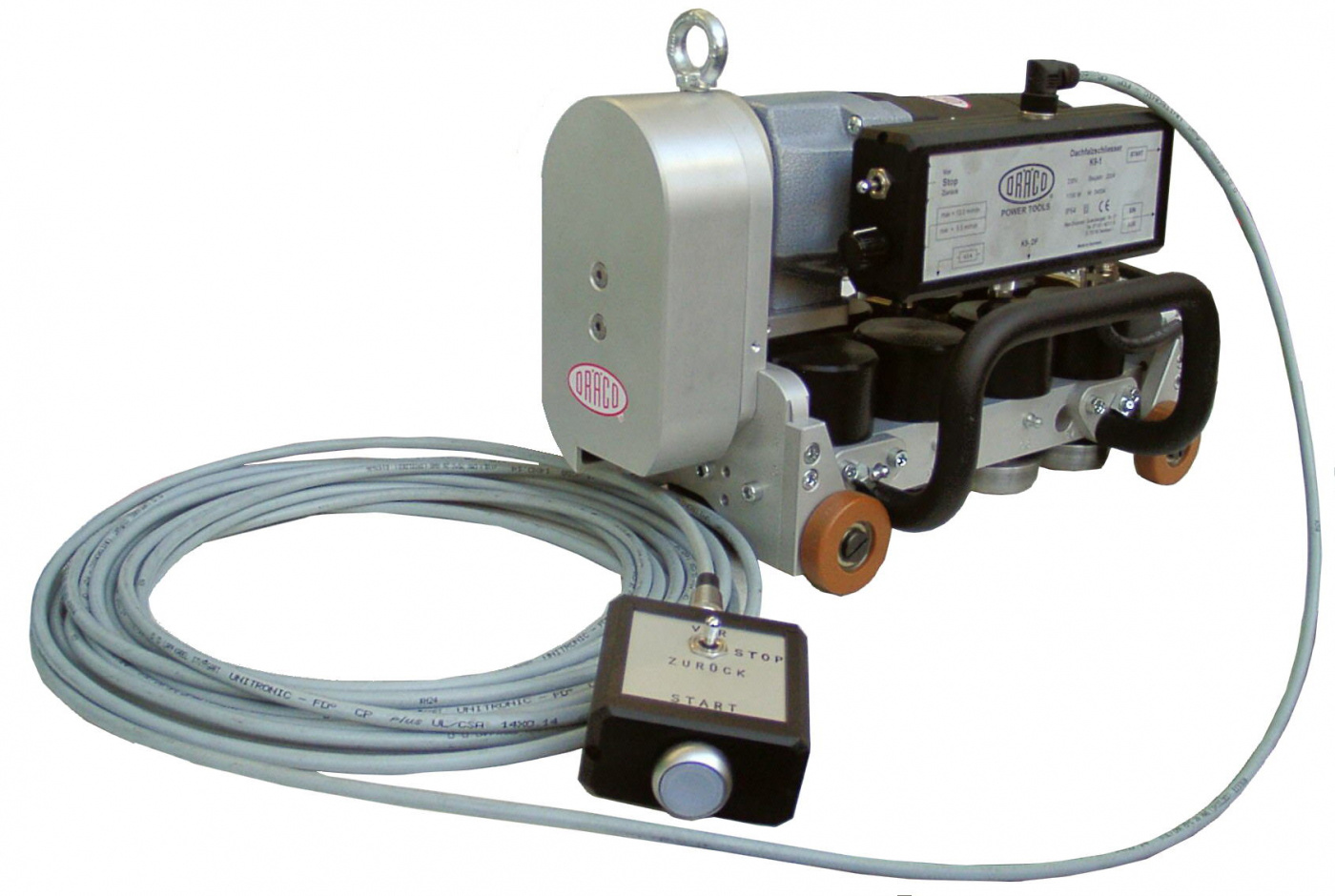

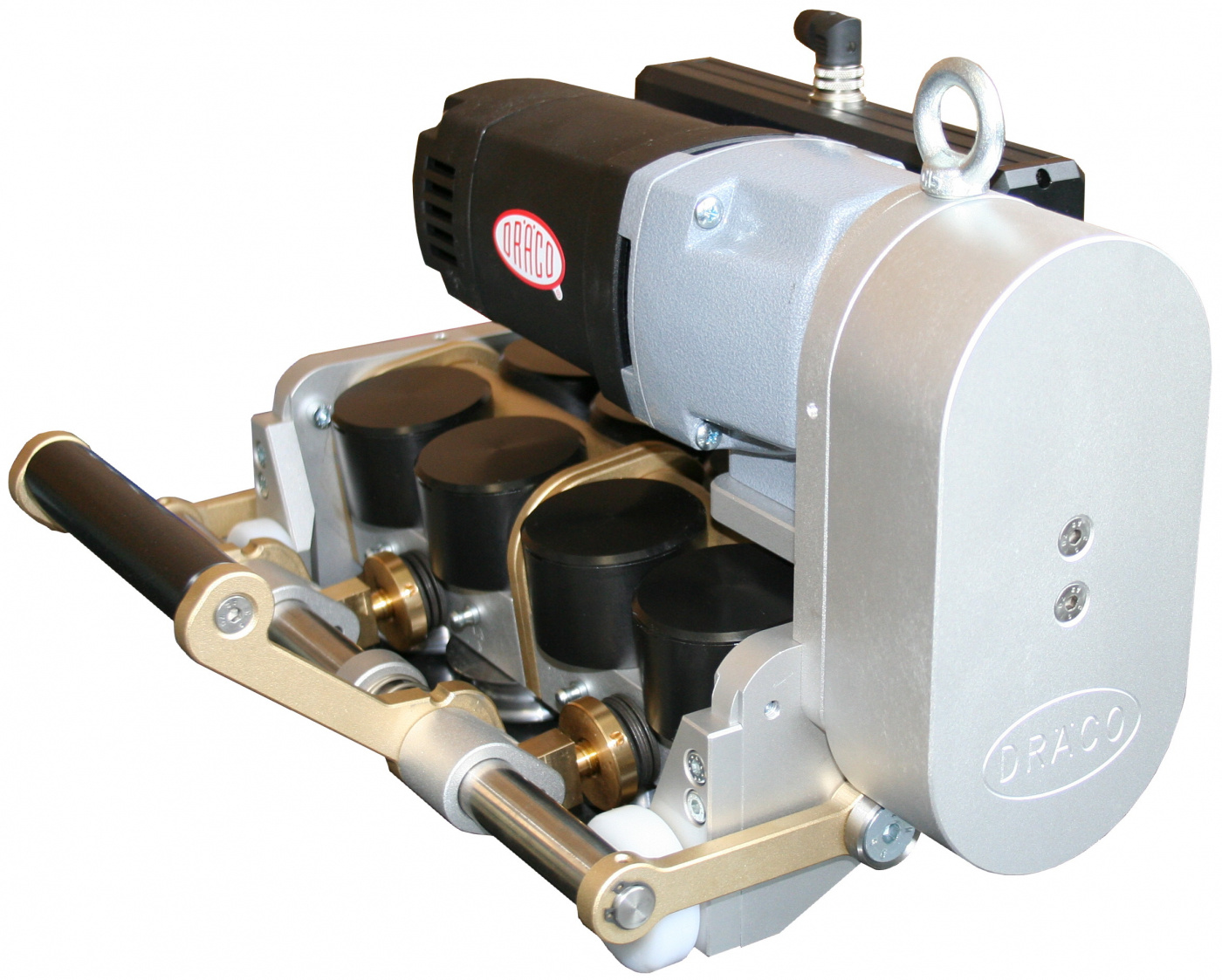

Automatic Power Seamer Dräco K9-1

• Information

• Key Features

  • Performs double lock seaming in a single pass
  • Optional single lock seaming with additional K9-WR rolls
  • Compatible with sheet metal, aluminum, copper, zinc (up to 0.8 mm), and stainless steel (up to 0.5 mm)
  • Adjustable for seam heights ranging from 25 to 60 mm
  • Variable pressure adjustment (K9-1-ASS) ensures clean transitions at cross seams
  • Operating speed between 5.5 and 13 m/min
  • Maintenance-free operation with no damage to coated or painted sheets
  • Can be inserted or removed mid-seam (preliminary hand-seaming required)
  • Optional dual safety switch (K9-1-DF) for automatic stop at panel ends or obstructions
  • Suitable for barrel curved roofs with a minimum radius of 1.2 m
  • Optional cutting rolls (K9-1-AR) available for seam removal during renovations

  Technical Data

  Item No.: 91560-1

  Material Thickness:

  Aluminum, Copper, Zinc, Steel: up to 0.8 mm

  Stainless Steel: up to 0.5 mm

  Seam Height: 25–60 mm

  Working Speed: 5.5–13 m/min

  Weight: 21 kg

  Power Supply: 1150 W / 230 V


  Optional Accessories

  • Remote Control (K9-1-KF) – available in 12 m, 18 m, and 25 m lengths
  • Winter Set (K9-1-WS) for optimal performance in low temperatures
  • Single Seam Forming Rolls (K9-1-WR)
  • Cutting Rolls (K9-1-AR)
  • Dual Safety Switch (K9-1-DF)
