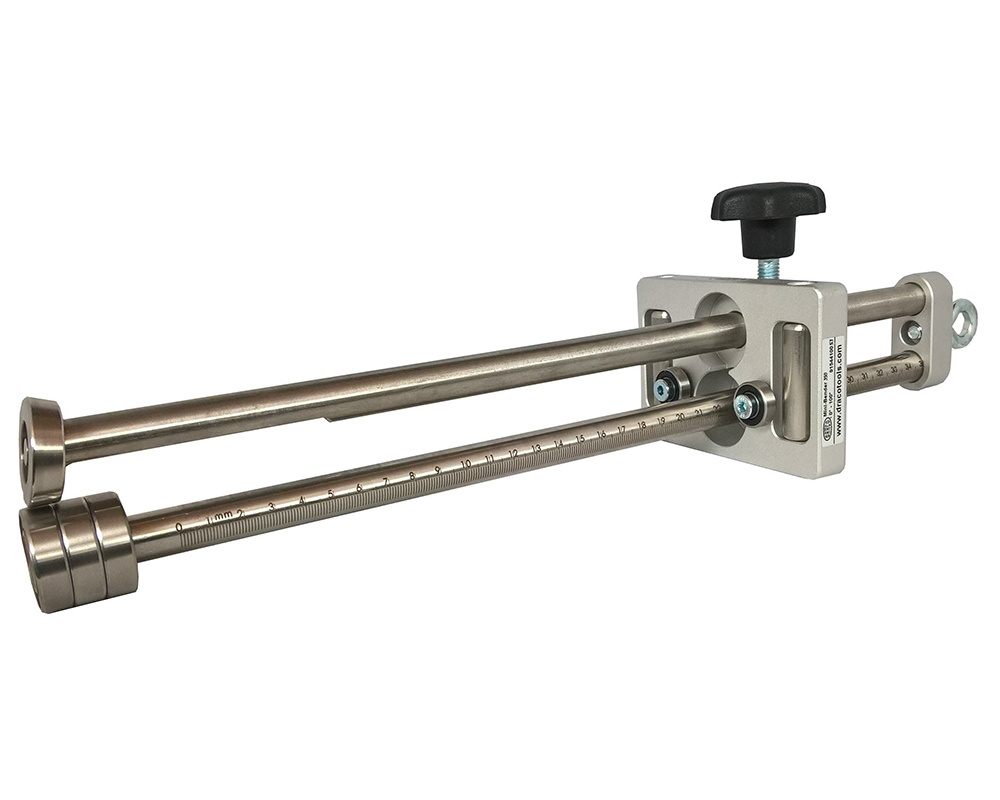

Universal mobile bending tool to bend and form all kind of materials straight, concave or convex.
With only 2 guide rollers the Mini-Bender has a good curve mobility.
This bender forms many profiles. Bending up and down, making under and over cloak (male and female), standing seam and many more. Bending height is continously adjustable (graduation in mm and inch). Inner and outer radii are possible, max. bending height depends on radius!
By using an adapter two Mini-Benders can be connected to a Duo-Mini-Bender. This one is extremely comfortable when working on long and straight metal sheets.
PROPERTIES:
- Flexible manufacturing process, even at the job site.
- Forms without any scratch mark.
- Graduation in millimeter.
- Light in weight, small in size.
- With the aid of an adapter 2 Mini-Benders can be assembled together to a longer tool and disassembled again to use two benders seperately, Duo-Mini-Bender 4/350.
TECHNICAL DATA:
Material thickness:
Steel 400 N/mm2: 0,7 mm
Stainless steel 600 N/mm2: 0,5 mm
Zinc, copper, aluminium: 1 mm
Bends from-to: 5-350 mm
