Article nr: 270844

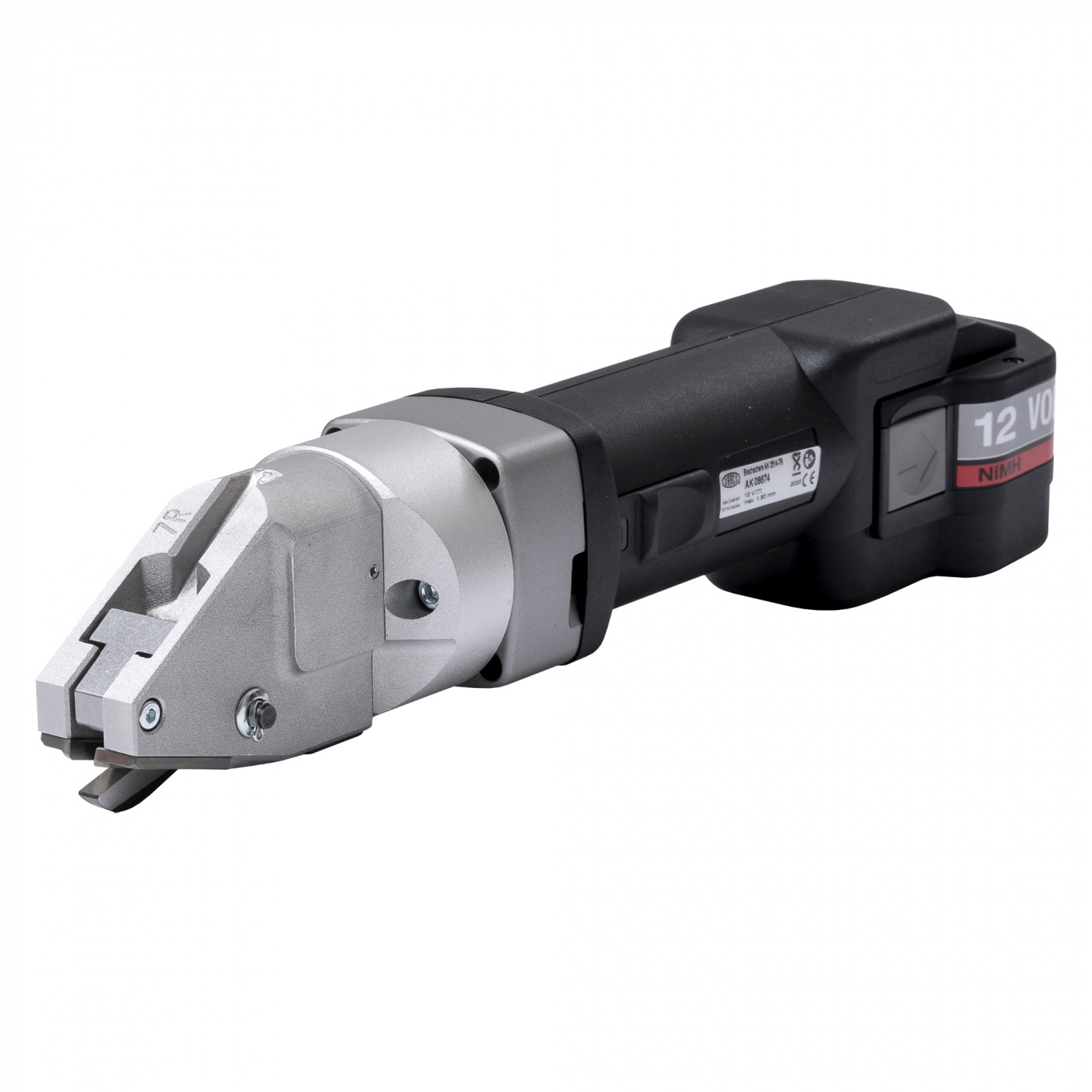

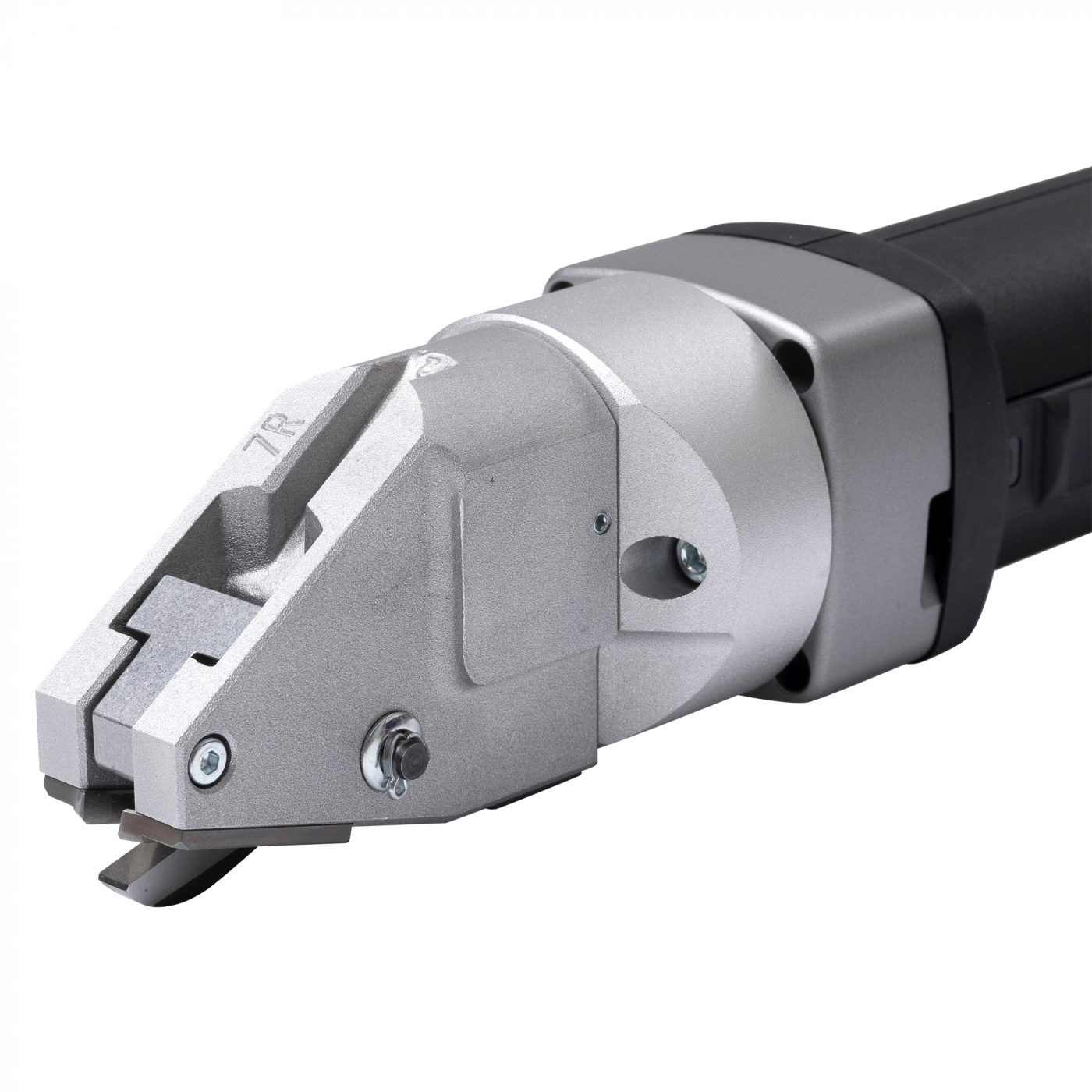

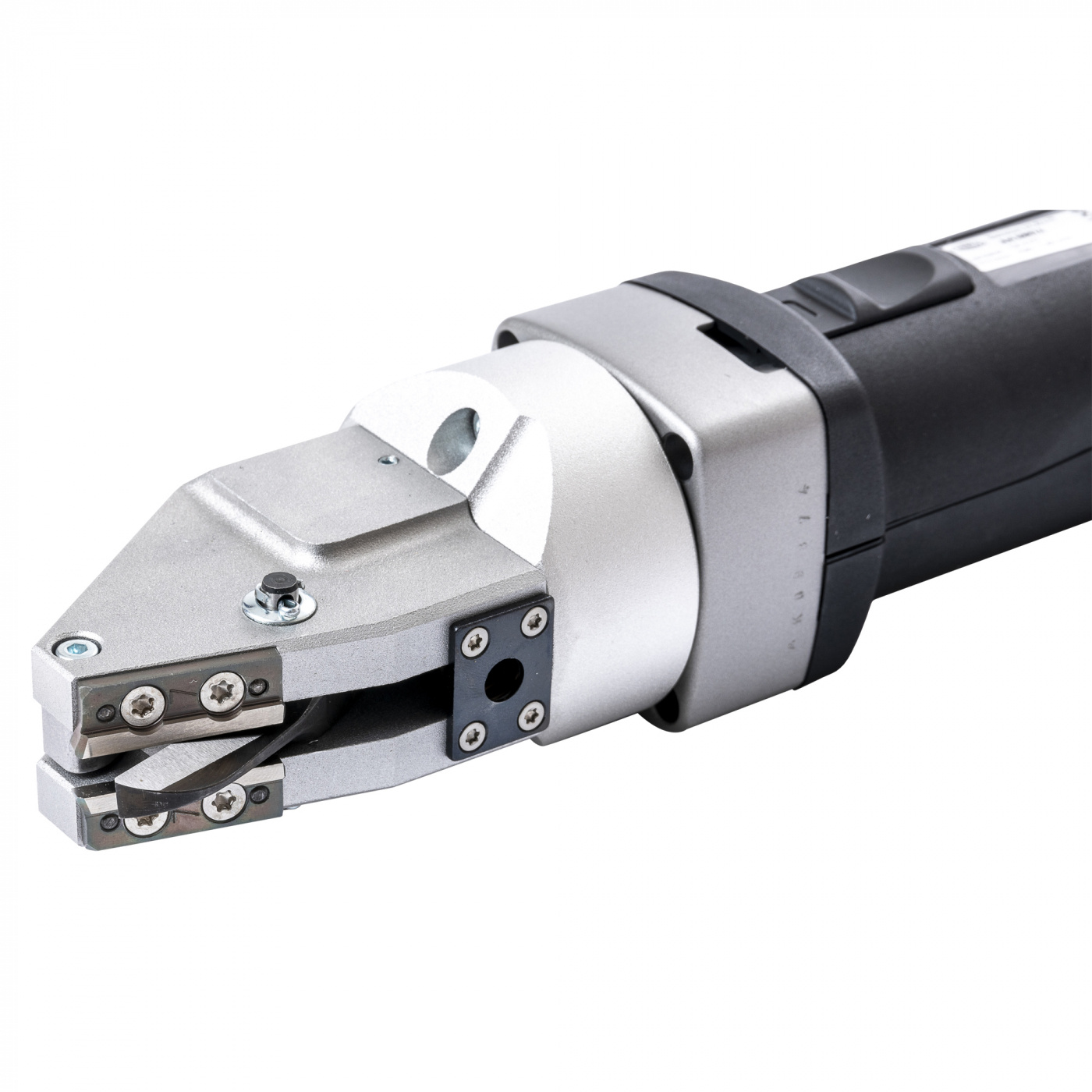

Radius-seam Metal shear 3514-7R 12V

Dräco sheet metal shears, perfect for cutting recesses in spiro pipes and metal of all kinds. Cuts straight and dense radii, even over seams. Also able to cut round holes down to 90mm diameter in ducts. Cuts up to 120 m on one charge.

Comes with plastic storage bag, two MXL 3.0Ah batteries and a 60 min charger.



Ask a question

Delivery:  Not in stock
  • Information
  • Type:

    AK3514-7R

    Minimum radius:

    50mm

    Minimum spiro radius:

    90mm

    Capacity steel plate:

    1.7mm (400N/mm)

    Aluminium sheet capacity:

    2.5mm (250N/mm)

    Capacity stainless steel plate:

    1.3mm (600N/mm)

    Cutting speed:

    4m/ min

    Output:

    12W

    Weight:

    2.15 kg (including battery)



    Spare parts:

    270857 Forged shear

    270867 Side cutters

    935145 Complete shaft

    920196 Oil cylinder

    270845 Battery 12v 3Ah - 3Wh

    270846 Battery charger
