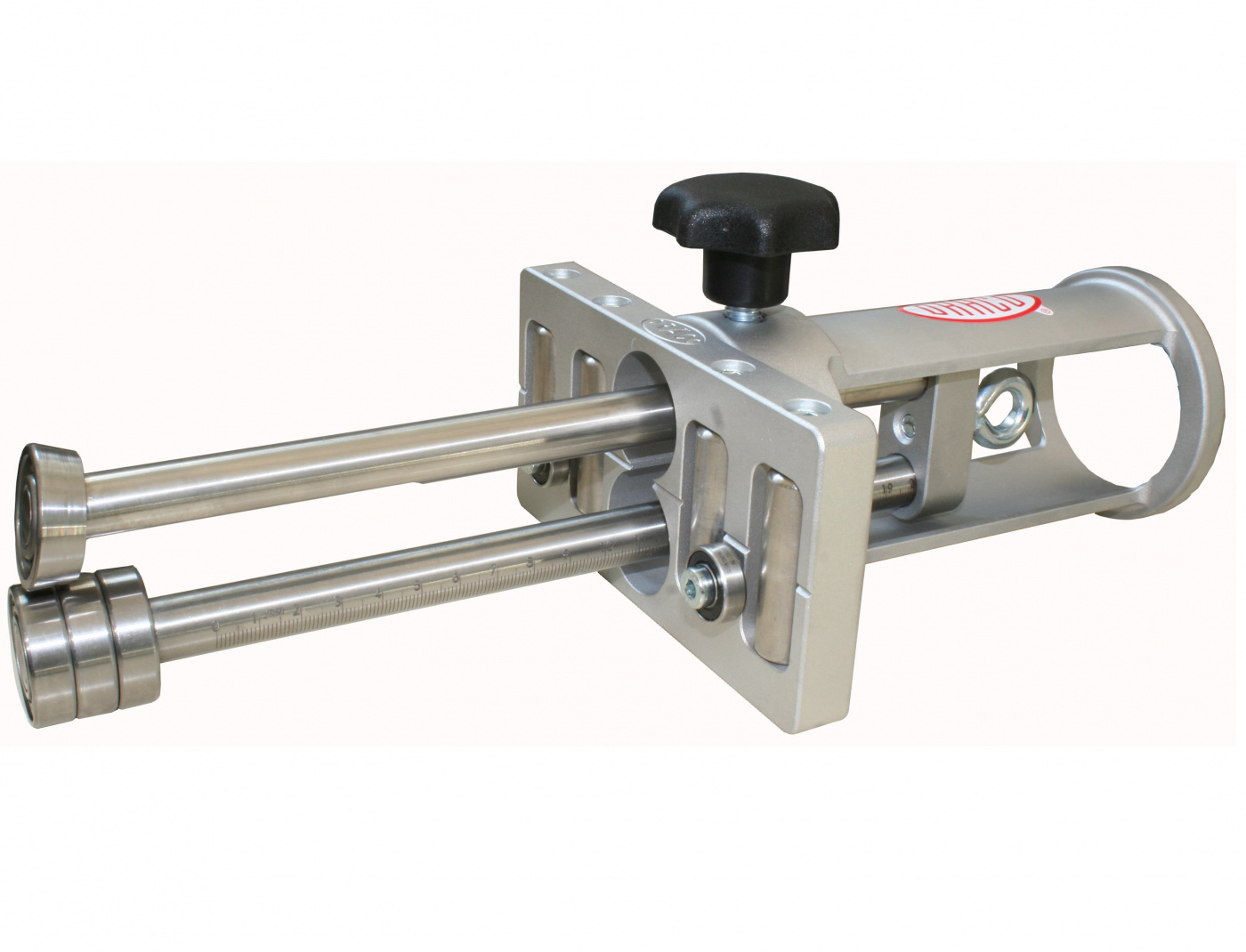

Universal mobile bending tool for bending and shaping all types of materials, straight, concave, or convex.
Features:
- 4 guide rollers for stable control and easy handling.
- Create various profiles: bend up and down, create male and female seams, standing seams, and more.
- Continuously adjustable bending height (graduated in mm and inches).
- Inner and outer radii possible, maximum bending height depends on the radius.
- Adapter allows two EcO-Benders to be connected for convenient work with long, straight metal sheets.
Advantages of Roll Forming:
- Flexible manufacturing process
- Easy customization and shaping on-site
- Shorter production times and faster delivery
- Small and affordable tools
- Optimal leverage for easier work
- Economical price
Technical Data:
- Steel (400 N/mm²): 0.7 mm
- Stainless steel (600 N/mm²): 0.5 mm
- Zinc, copper, aluminum: 0.8 mm
- Bending height: 5 - 200 mm
